VESSEL : ….
PORT : SEMBAWANG
JOBNO :
EQUIPMENT : STEER GEAR PUMP
DATE : 07.07.2015
MAKE : MITSUIBISHI

MODEL : 1V-FH2B-MK

ITEM
DESCRIPTION / REMARKS : SERVICING /OVERHAUL

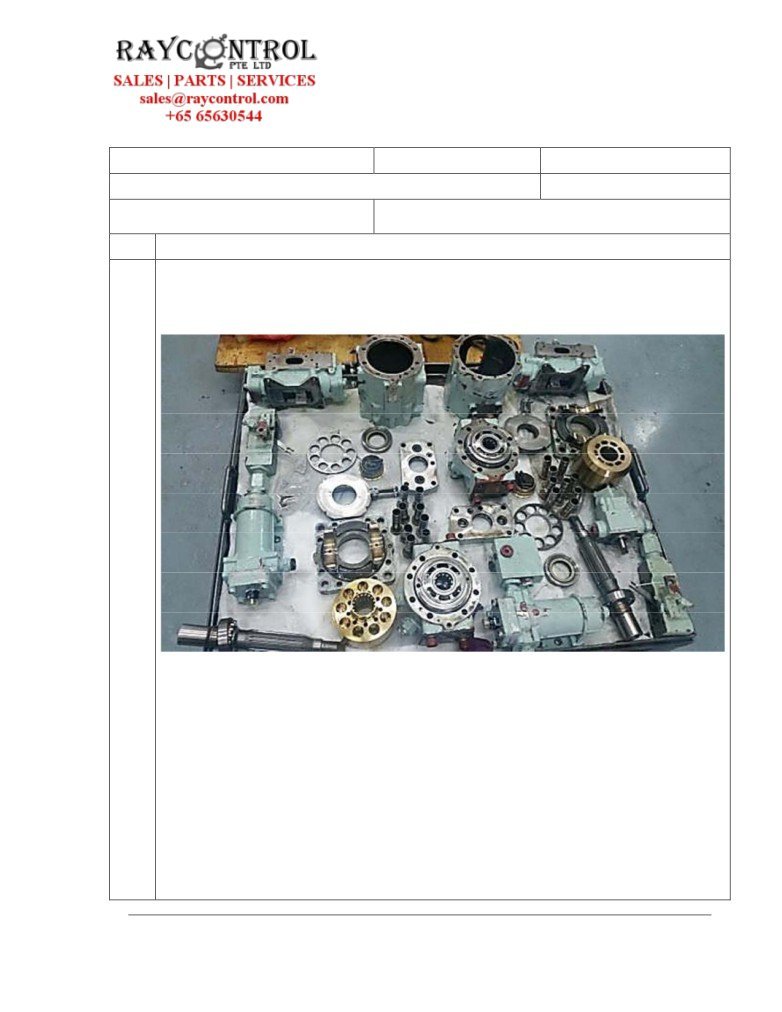

COMPLETE DISMANTLE FOR OVERHAULING
Completely dismantled, cleaned for vessel engineer inspection.
1
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering Gears,
Valve Remote Controls.
SERVICE
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
608599Tel:65630544 Fax:65600941
Company Reg No : 198602637N
sales@raycontrol.com
ISO 9001:2008 accredited
2 | P a g e
PARTS CONDITION:

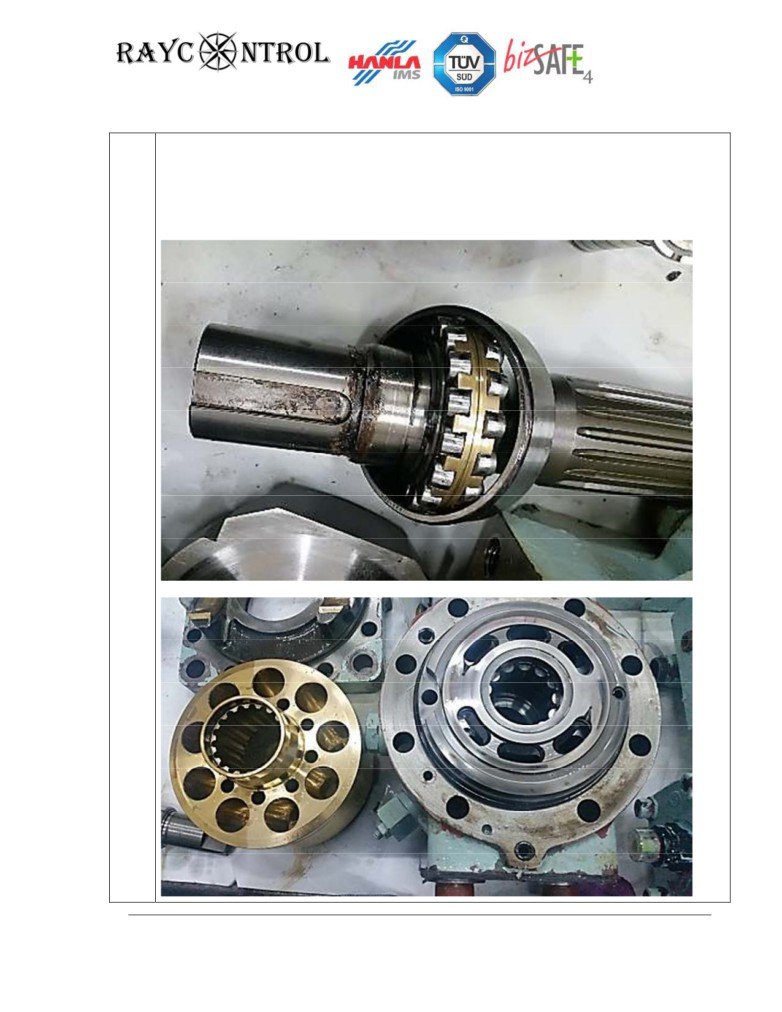

Both pump main shaft bearing found unsatisfactory condition reccommended to renew.
Pump rotary groups both barrels and friction plates found satisfactory.
Seals all found brittle and hardened.
2
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering Gears,
Valve Remote Controls.
SERVICE
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
608599Tel:65630544 Fax:65600941
Company Reg No : 198602637N
sales@raycontrol.com
ISO 9001:2008 accredited
3 | P a g e

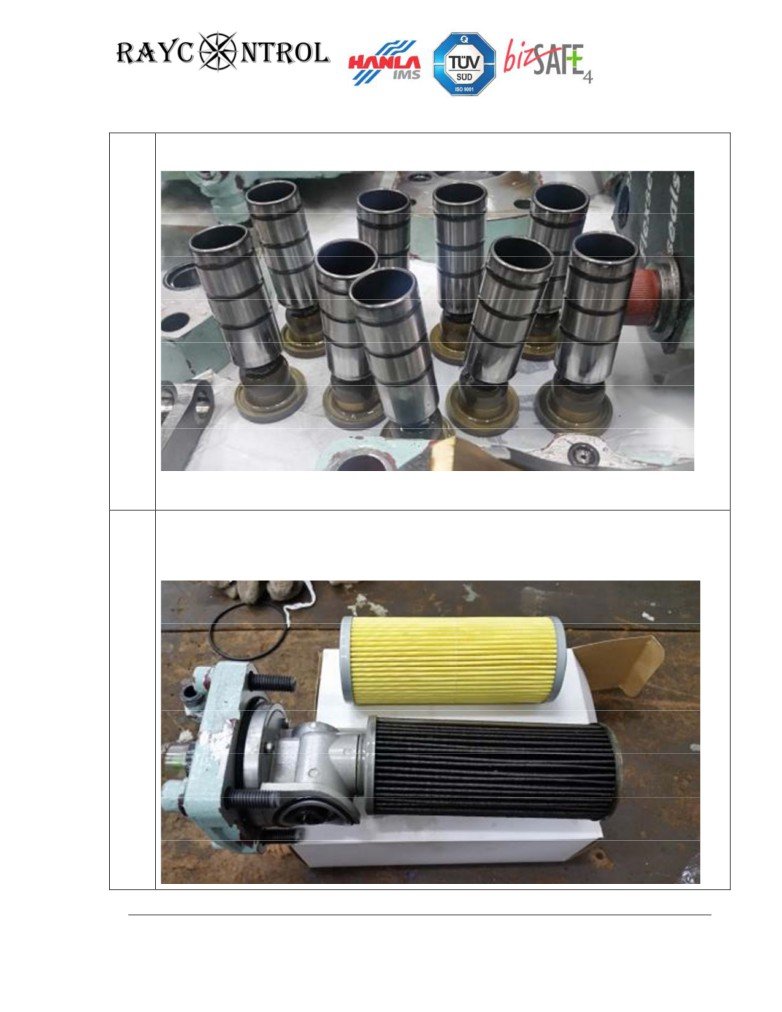

Both pumps pistons found satisfactory condition.
3
LINE FILTER :-
Both pump line filter found dirty and Blacken.Removed filters and replace with new flter.
4
Authorised HANLA IMS and since 1981 and over 8000 Track Recordsfor Deck Machinery, Steering Gears,
Valve Remote Controls.
SERVICE
raycOntrol pte ltd
REPORT
7 TOH GUAN ROAD EAST #05-07 SINGAPORE
608599Tel:65630544 Fax:65600941
Company Reg No : 198602637N
sales@raycontrol.com
ISO 9001:2008 accredited
4 | P a g e

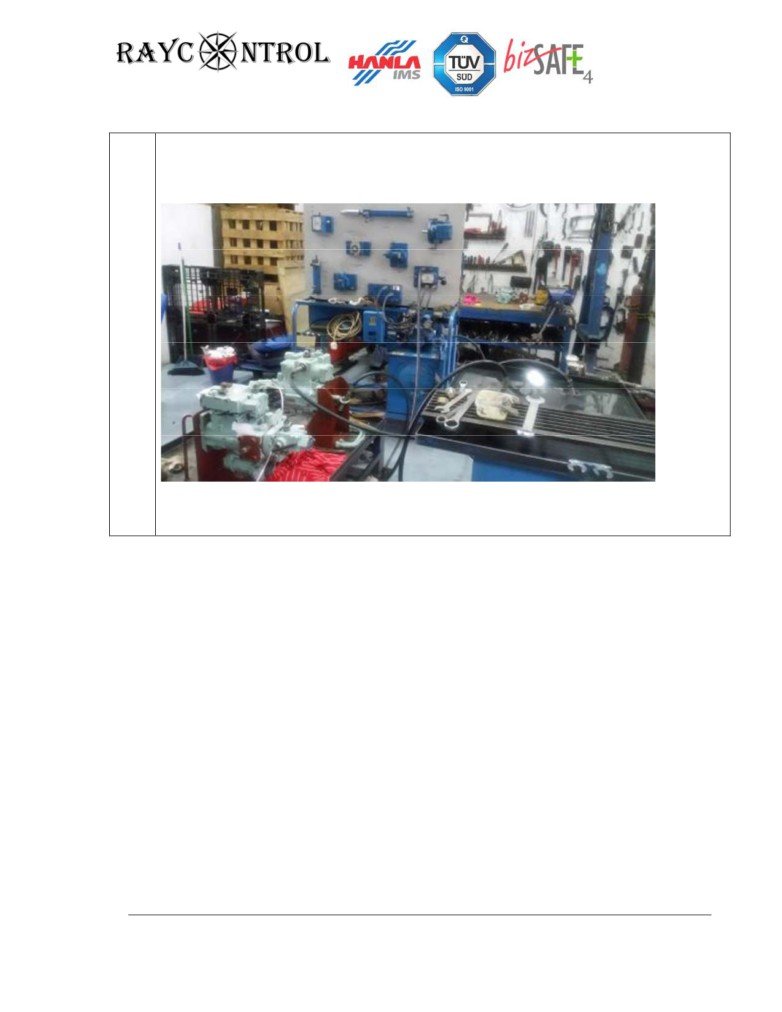

SHOP TEST:-
Both pumps shop tested and servo neutral adjustment satisfactory.
5
Reported By
Marimuthu.S
